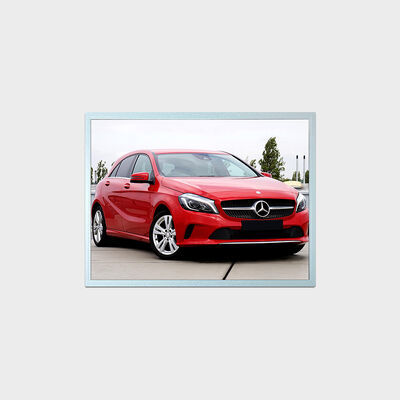

15 Inch Touch Integrated TFT LCD Display for Smart Medical Monitoring Devices
商品の詳細
| 名前 | 15インチTFTLCDディスプレイ | パネルサイズ | 15インチ |
|---|---|---|---|
| 解決 | 1024*768 | 輝度 | 1500 (標準) |
| アスペクト比 | 4:3 | アクティブエリア | 304.128*228.096mm |
| 外形寸法 | 326.5*253.5*9.7mm | インタフェース | LVDS（1ch、8ビット） |
| ハイライト | 15 inch touch TFT LCD display,medical monitoring LCD display,high brightness touchscreen display |
||
製品の説明
15 Inch Touch Integrated TFT LCD Display for Smart Medical Monitoring Devices
Product Advantages
- Brightness customization 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typical), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
LCMA-RX0150GB05-C150
| Brand | Rogin |
|---|---|
| Series | High Brightness LCD Display |
| Panel Size (inch) | 15 |
| Model | LCMA-RX0150GB05-C150 |
| Brightness | 1500 nits |
| Resolution | 1024 × 768 |
| Active Area | 304.128 × 228.096 mm |
| Overall Size | 326.5 × 253.5 × 9.7 mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (1 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 4:3 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
