15 Inch Bar Display With 1028*204 Resolution LVDS Interface 700nits Brightness
試供品およびクーポンのための私に連絡しなさい。
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
スカイプ: sales10@aixton.com
心配があれば、私達は24時間のオンライン・ヘルプを提供する。
x商品の詳細
| 名前 | 棒LCD表示 | パネルサイズ | 15" |
|---|---|---|---|
| 解決 | 1280*248 | 輝度 | 300 （タイプ。） |
| 動作温度。 | 0〜50℃ | アクティブエリア | 374.78*72.61mm |
| アウトラインディメンション | 396*100.8*12.58mm | ||
| ハイライト | 15 inch bar LCD display,LVDS interface bar display,700nits brightness bar screen |
||
製品の説明

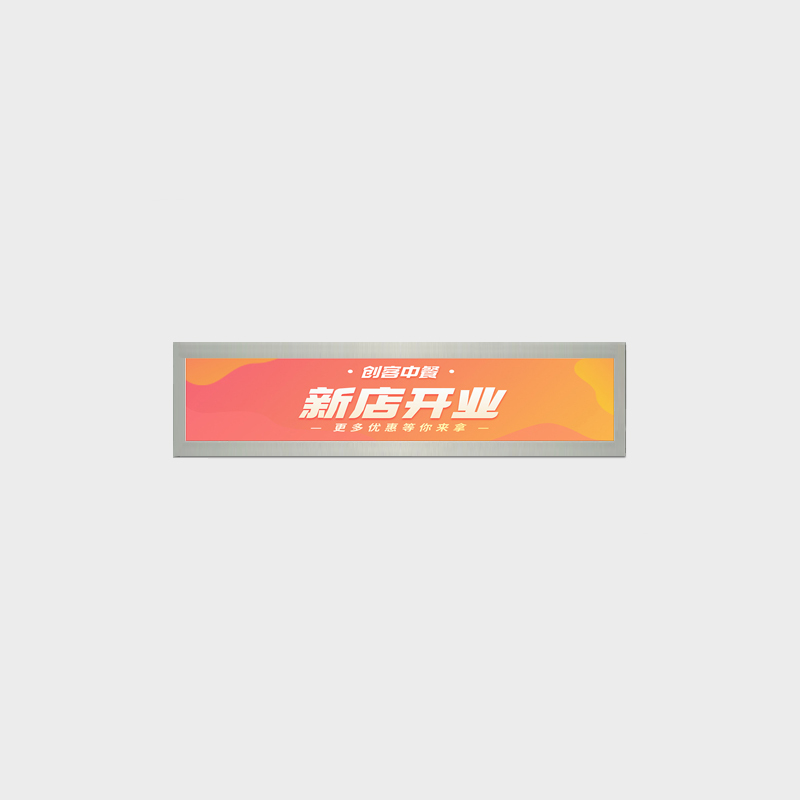

15 Inch Bar Display With 1028*204 Resolution LVDS Interface 700nits Brightness
Product Advantages
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
- Advanced cutting technology to ensure the yield and precision.
- High reliability with same features as original panel.
- High Anti-vibration.
- Brightness can be customized (500-2500nit).
- Long life time 50K hours(Typ), up to 80K hours.
Product Applications
- Commercial signage: Advertising and Price Shelves.
- Public transportation: Bill board for Bus/Metro and light rail.
- Guidance board, Lift advertising board.
- Financial services. Bank call notice board.
- Name card.
- Advertising board on taxi.
Specifications
LCMA-RX0150TB01-C030
| Brand | Rogin |
|---|---|
| Series | Bar Type LCD Display |
| Panel Size | 15 inch |
| Model | LCMA-RX0150TB01-C030 |
| Brightness | 300 |
| Resolution | 1280*248 |
| Active Area | 374.78*72.61mm |
| Overall Size | 396*100.8*12.58mm |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Touch Panel | Without |
| Operating Temperature | 0~50 ℃ |
